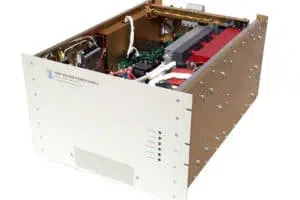

Capacitor Charging Power Supplies

Stangenes Industries specializes in producing high-voltage capacitor charging power supplies for rapid, precise energy delivery in pulsed power applications. These systems excel in environments that demand quick charge and discharge cycles, including linear accelerators, lasers, medical devices, and high-energy research equipment.

Built for consistent performance and precise control, our capacitor charging power supplies are available in multiple configurations, from modular units to fully integrated turnkey systems. Each is engineered for long service life, fast repetition rates, and efficient power conversion customized to meet your exact requirements.

Our Capacitor Charging Technology

Our capacitor charging power supplies use advanced power conversion designs to meet high-voltage and high-frequency demands. At the core of these systems are high-speed IGBT switches configured in quasi-resonant, zero-current-switching topologies, which reduce switching losses and overall system weight.

Many models operate without oil or dielectric fluids, instead using air-insulated or solid-state designs that simplify maintenance and improve safety. Our Optimized Charging Cycle (OCC) technology manages peak power draw from the AC line, making these systems well-suited for charging large capacitor banks without exceeding facility power limits.

With rapid recharge capabilities and precise energy delivery for every pulse, our systems support demanding pulsed power environments while maintaining energy efficiency.

Why Choose Stangenes Capacitor Charging Power Supplies?

Our capacitor charging power supplies are proven in high-performance applications where speed, repeatability, and efficiency are critical. Advantages of capacitor charging power supplies from Stangenes Industries include:

High efficiency and low ripple. Optimized circuitry minimizes energy loss while delivering clean, stable output.
Fast rise times. Short charge cycles support high-frequency pulsed operations.
Reliable and compact design. Air-insulated, oil-free builds improve reliability and reduce maintenance needs.
Custom engineering. Every system can be tailored for voltage range, pulse energy, mounting style, and control interface to match specific application requirements.

These systems are used worldwide in:

Pulsed laser systems
Linear accelerators
Flashlamp equipment
Medical and industrial pulsed power systems

Explore This Page

Contact Us

Power Supply Capabilities

Industry Standards

ISO-9001-2015
International Organization for Standardization

General Information

Stangenes Industries has developed several advanced capacitor charging technologies. Our state-of-the-art power conversion units utilize IGBT switches operating at high frequency in a quasi-resonant design utilizing zero voltage switching topology. These units often contain no oil or other dielectric fluids, so these units are significantly lighter and more reliable than comparable units. The advanced Optimized Charging Cycle (OCC) that we have developed reduces the peak power consumption from the line. This feature enables charging of large capacitor banks without exceeding the allowed average power.

Specification Ranges

Stangenes has produced power supplies utilizing these technologies at many different power levels and output voltage configurations.

10kW to 2MW
Single digit kilovolts to hundreds of kilovolts
Power Supplies for high repetition modulators for magnetrons and klystron, as well as many industrial applications

We are constantly expanding our product line and many new configurations are in the pipeline today including designs for hundreds of kilovolts and hundreds of kilowatts.

SCR Controlled DC Power Supplies

Stangenes Industries produces SCR controlled DC power supplies in standardized configurations or to customer specifications. These supplies operate on conventional 50-400 Hz power sources and supply output voltages that range from a few kilovolts to over 300kV with power rating from ten kilowatts up to a few megawatts average. The DC power supplies can be supplied as components of a system or a complete “turnkey” system.

Capacitor Charging Power Supplies From Stangenes

Stangenes Industries has decades of experience designing and manufacturing high-voltage capacitor charging power supplies for demanding pulsed power applications. Our systems are built for speed, precision, and efficiency, delivering consistent performance in lasers, linear accelerators, medical devices, and industrial equipment. Our engineering capabilities can tailor every system to meet exact voltage, energy, and integration requirements while maintaining reliability in high-frequency, high-voltage environments.

From structural design to component selection, each capacitor charging power supply is built to meet strict technical specifications and endure years of operation. Our solutions minimize downtime, lower maintenance needs, and deliver precise energy with every pulse. Whether you require a modular design or a custom turnkey system for large capacitor banks, Stangenes provides the technical expertise and production capacity to meet your goals on time and within budget.
